| EPI SERIES | DEFINITION | MECHANIC SYSTEM | METAL SHEET OPTION | METAL SHEET THICKNESS | PAINT OPTION | LOCK SYSTEM | IP CODE | |||||||||
| EQUIPPED INTERNAL TYPE
BOARDS |
MODULAR
SEMI- MODULAR |
GALVANIZED
DKP |
1,5 mm
2 mm |
STANDARD RAL 7035 OTHER OPTIONS | 3 POINT
4 POINT |
IP 2X
IP 44 |
||||||||||
| TECHNICAL DETAILS | ||||||||||||||||
| SCAFFOLD | GATE | BASE | ROOF | REAR-SIDE COVERS | MONTAGE PLATE | COVER METAL SHEET | ||||||||||
| 1,5 mm
2 mm |
1,5 mm
2 mm |
2 mm | 2 mm | 1,5 mm | 1-2 mm Between Values | 1,2 mm
1,5 mm |
||||||||||
| TYPES OF BOARDS ACCORDING TO INTENDED USE | ||||||||||||||||
| TEDAŞ TYPE BOARD TYPES | COMPENSATION BOARD TYPES | RENEWABLE ENERGY BOARD TYPES | CONSTRUCTION SITE BOARD TYPES | |||||||||||||
| MAIN DISTRIBUTION BOARDS (MDB)
UPS DISTRIBUTION BOARDS (UDB) |
HARMONIC FILTERED COMPENSATION BOARDS
TRISTOR SWITCHED COMPENSATION BOARDS |
PLC BOARDS
DDC BOARDS SCADA BOARDS |
KIOSK
PULT PIANO |
|||||||||||||

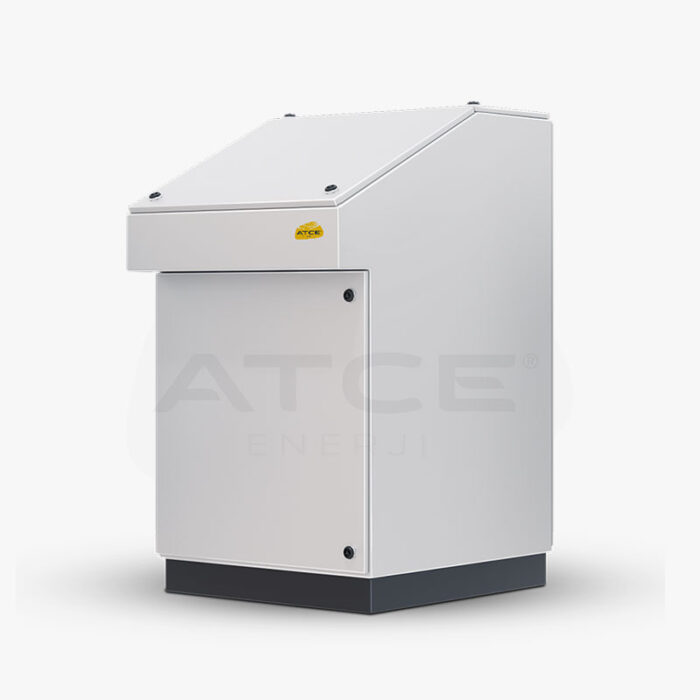

PULT TİPİ KONTROL MASASI
Özel forma sahip kontrol panolarıdır.
 |
 |
|
 |
 |
Teknik Bilgiler
Kullanım Alanları
