EPI SERIES | DEFINITION | MECHANIC SYSTEM | METAL SHEET OPTION | METAL SHEET THICKNESS | PAINT OPTION | LOCK SYSTEM | IP CODE | |||||||||
EQUIPPED INTERNAL TYPE
BOARDS |
MODULAR
SEMI- MODULAR |
GALVANIZED
DKP |
1,5 mm
2 mm |
STANDARD RAL 7035 OTHER OPTIONS | 3 POINT
4 POINT |
IP 2X
IP 44 |
||||||||||
TECHNICAL DETAILS | ||||||||||||||||
SCAFFOLD | GATE | BASE | ROOF | REAR-SIDE COVERS | MONTAGE PLATE | COVER METAL SHEET | ||||||||||
1,5 mm
2 mm |
1,5 mm
2 mm |
2 mm | 2 mm | 1,5 mm | 1-2 mm Between Values | 1,2 mm
1,5 mm |
||||||||||
TYPES OF BOARDS ACCORDING TO INTENDED USE | ||||||||||||||||
TEDAŞ TYPE BOARD TYPES | COMPENSATION BOARD TYPES | RENEWABLE ENERGY BOARD TYPES | CONSTRUCTION SITE BOARD TYPES | |||||||||||||
MAIN DISTRIBUTION BOARDS (MDB)
UPS DISTRIBUTION BOARDS (UDB) |
HARMONIC FILTERED COMPENSATION BOARDS
TRISTOR SWITCHED COMPENSATION BOARDS |
PLC BOARDS
DDC BOARDS SCADA BOARDS |
KIOSK
PULT PIANO |

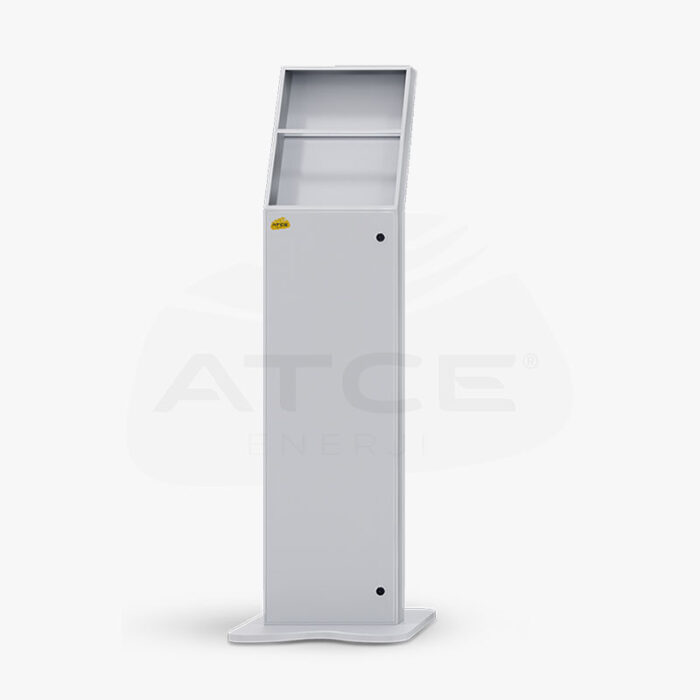

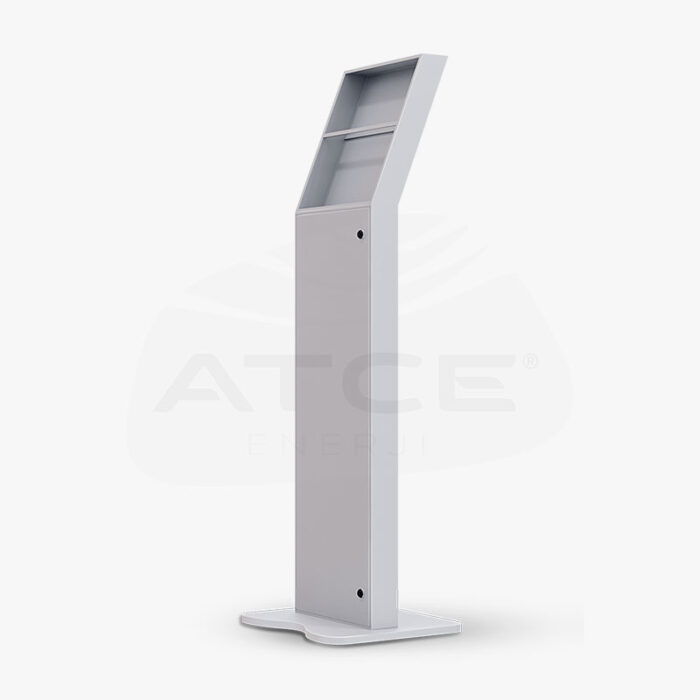

KİOSK TİPİ KONTROL MASASI
Özel forma sahip kontrol panolarıdır.
Kategoriler: E SERİSİ, EPİ SERİSİ, Kontrol Masaları
Teknik Bilgiler
Kullanım Alanları
- Fabrika
- Endüstriyel
- Süper Market
- Benzin İstasyonu
- Depo
- Hastane
- Havaalanı
- Metro
- Otel
- Otomasyon
- Stadyum
- Telekominikasyon
