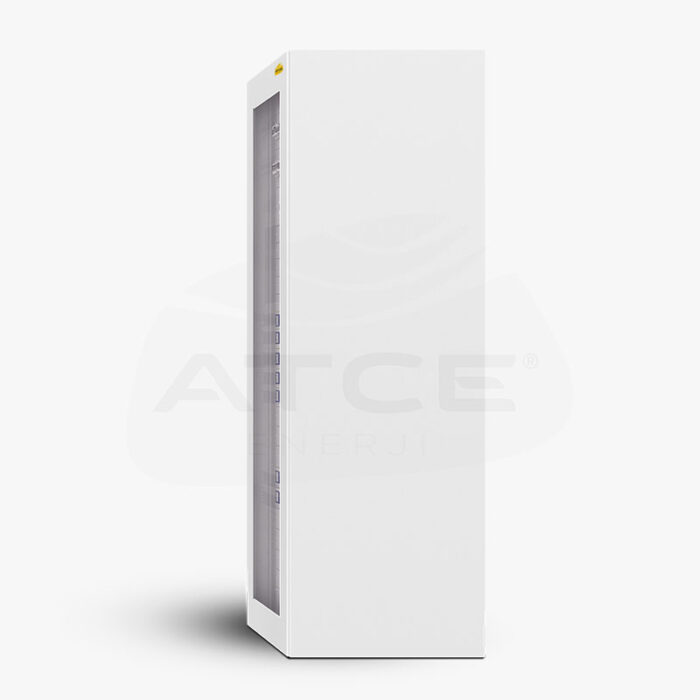

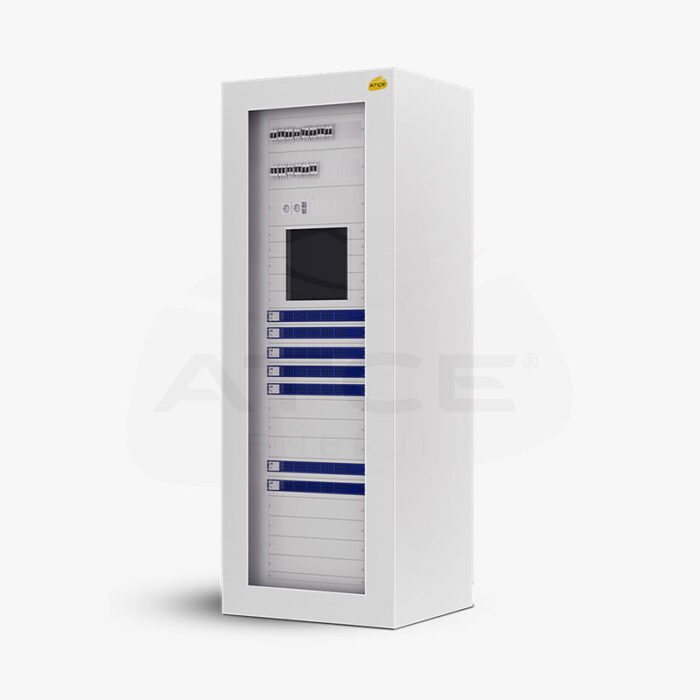

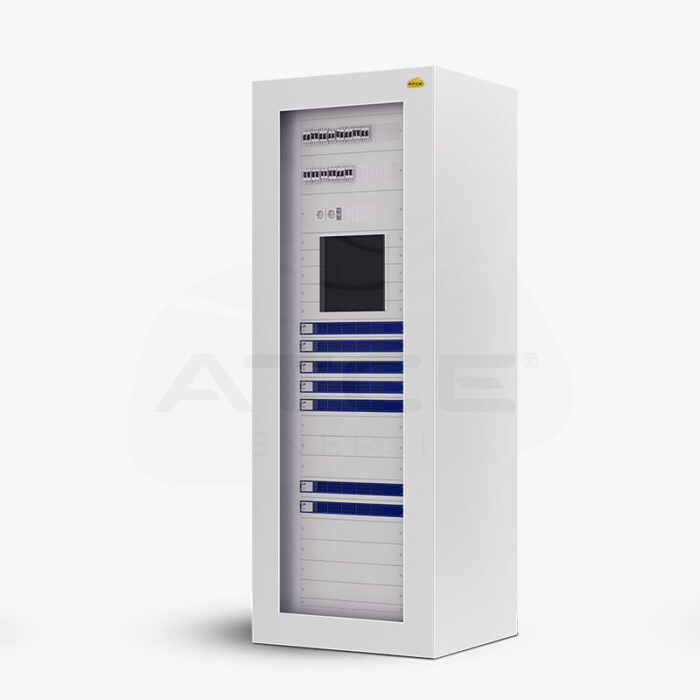

TEİAȘ TİPİ OTOMASYON PANOSU
Tüm kontrol ve koruma sisteminin SCADA’ya entegrasyonunun sağlanması için kullanılan panolardır.
 |  |  |
 |  |
Technical Information
| ESI SERIES | DEFINITION | MECHANIC SYSTEM | METAL SHEET OPTION | METAL SHEET THICKNESS | PAINT OPTION | LOCK SYSTEM | IP CODE | ||||||||
| EQUIPPED INTERNAL TYPE INSTITUTION BOARDS | STANDARD | GALVANIZED | 2 mm 3 mm | STANDARD RAL 7035 OTHER OPTIONS | 3 POINT | IP 2X | |||||||||
| TECHNICAL DETAILS | |||||||||||||||
| SCAFFOLD | GATE | BASE | ROOF | REAR-SIDE COVERS | MONTAGE PLATE | COVER METAL SHEET | |||||||||
| 2 mm | 2 mm 3 mm | 2 mm 3 mm | 2 mm 3 mm | 2 mm 3 mm | 1,5 mm 2 mm | 1,5 mm 2 mm | |||||||||
| TYPES OF BOARDS ACCORDING TO INTENDED USE | |||||||||||||||
| TEDAŞ TYPE BOARD TYPES | TEİAŞ TYPE BOARD TYPES | ||||||||||||||
| INTERNAL TYPE AG(Low Voltage) DISTRIBUTION BOARDS (50-1600 kVA) | KRP BOARDS (34.5kV/154kV/380kV) KP BOARDS (34.5kV/154kV/380kV) OG SWITCH BOARDS COMMUNICATION BOARDS BUS BAR PROTECTION BOARDS COUNTER BOARDS(4-6-8) AC DISTRIBUTION BOARDS DC DISTRIBUTION BOARDS | ||||||||||||||
Kullanım Alanları
